MasterBox MB520 ARGB MasterBox MB520 ARGB Size : 496 x 217 x 468 mm mm
S/P : Mini-ITX, Micro-ATX, ATX
2x USB 3.0, Audio In & Out (supports HD audio)
Expansion slot : 7
Drive bays :  2x 3.5"/2.5"  , 4 x SSD
1 fan 12cm phía sau , 3 fan ARGB phía trước + ARGB controller + Dây chia LED ARGB , mở rộng tối đa 6 fan ,  có thể gắn tản nhiệt nước 360 mm phía trước , 240mm ở trên, lưới lọc bụi ở trên , trước và mặt đáy , hỗ trợ VGA dài đến 410mm , tản nhiệt khí 165mm
S000228 Mid Tower 2.150.000 VND Số lượng: 1000 cái

MasterBox MB520 ARGB

  • Mã sản phẩm: S000228
  • Giá bán: 2.150.000 VND

  • Size : 496 x 217 x 468 mm mm
    S/P : Mini-ITX, Micro-ATX, ATX
    2x USB 3.0, Audio In & Out (supports HD audio)
    Expansion slot : 7
    Drive bays :  2x 3.5"/2.5"  , 4 x SSD
    1 fan 12cm phía sau , 3 fan ARGB phía trước + ARGB controller + Dây chia LED ARGB , mở rộng tối đa 6 fan ,  có thể gắn tản nhiệt nước 360 mm phía trước , 240mm ở trên, lưới lọc bụi ở trên , trước và mặt đáy , hỗ trợ VGA dài đến 410mm , tản nhiệt khí 165mm


  •

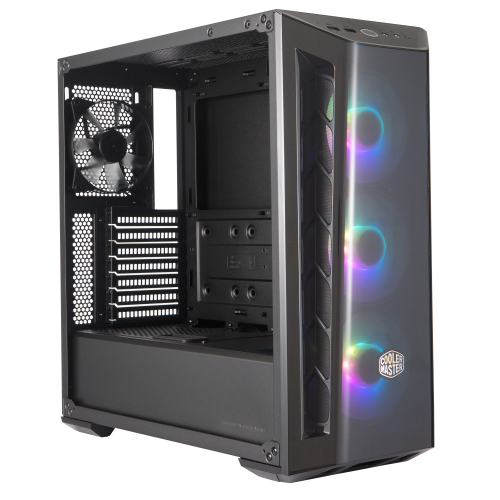

MasterBox MB520 ARGB

Light ‘Em Up.

DarkMirror Front Panel
Mesh Intakes
ARGB Lighting System
Tempered Glass Side Panel

A Look Through The DarkMirror

A Look Through The DarkMirror

Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel’s sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.

If you’re thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.

DarkMirror Front Panel

DarkMirror Front Panel

Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.

Mesh Intakes

Mesh Intakes

Large, mesh intakes on each side of the front panel provide considerable airflow to system.

ARGB Lighting System

ARGB Lighting System

Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.



Tempered Glass Side Panel

Tempered Glass Side Panel

Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Versatile Cooling Options

Versatile Cooling Options

Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.

Model Number
MCB-B520-KGNN-RGA
Series
MasterBox Series
Size
Mid Tower
Available Color(s)
Black
Materials
Steel, Plastic, Tempered Glass
Dimensions (L x W x H)
496 x 217 x 469 mm
Weight
6.59 kg
Motherboard Support
Mini ITX, Micro ATX, ATX, E-ATX*, SSI CEB*, (*support for up to 12" x 10.7", will limit cable management features)
Expansion Slots
7
5.25" Drive Bays
N/A
2.5" / 3.5" Drive Bays (combo)
2 (Max.2)
2.5" Drive Bays
4 (Max.6)
I/O Panel
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter
Pre-installed Fans - Front
3x 120mm ARGB Fans
Pre-installed Fans - Rear
1x 120mm (Black)
Fan Support - Top
3x 120mm, 2x 140mm
Fan Support - Front
3x 120mm, 2x 140mm
Fan Support - Rear
1x 120mm
Radiator Support - Top
120mm, 240mm, 360mm, (44mm max motherboard component height)
Radiator Support - Front
120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
Radiator Support - Rear
120mm
Clearance - CPU Cooler
165mm/6.49"
Clearance - PSU
180mm/7.08"
Clearance - GFX
410mm/16.1"
Cable Routing
19~27mm
Dust Filters
Top, Front, Bottom
Power Supply Support
Bottom mount, ATX
Warranty
2 years
EAN Code
4719512095171
UPC Code
884102047473
